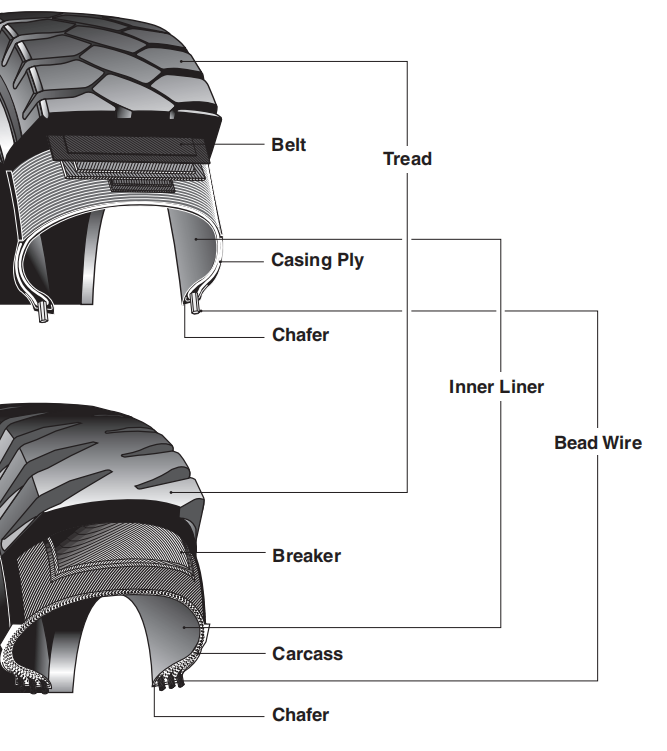

The Difference Between Radial Tire and Bias Tire

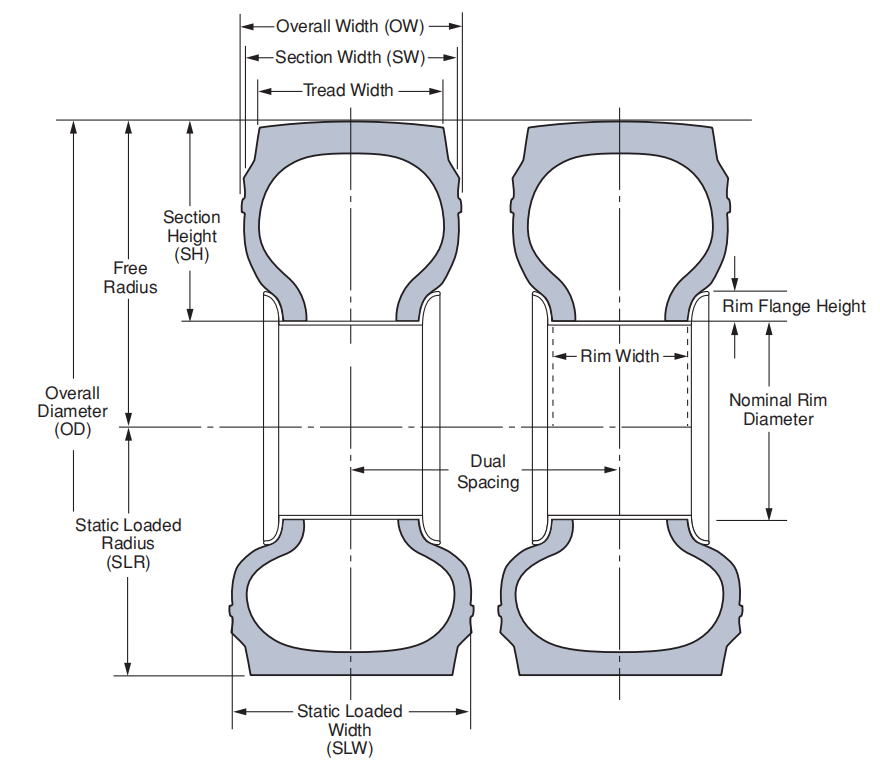

Tire Terminology Definition

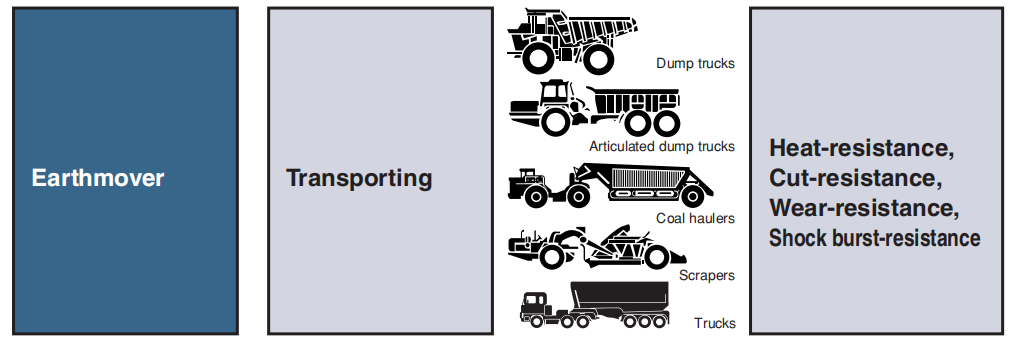

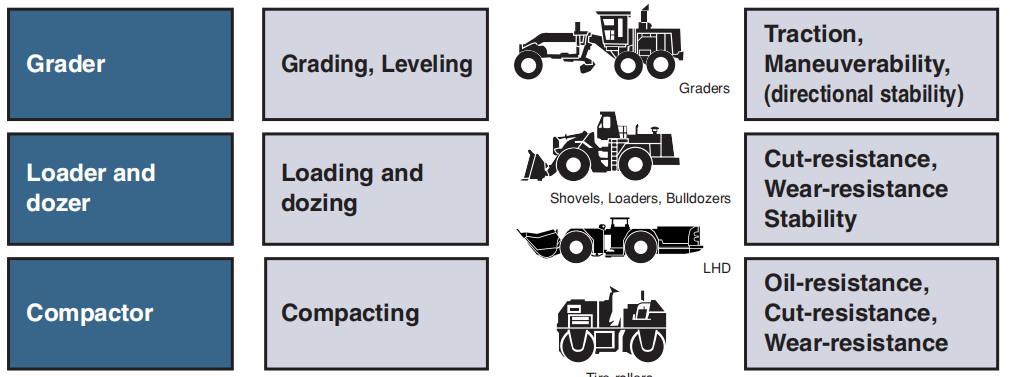

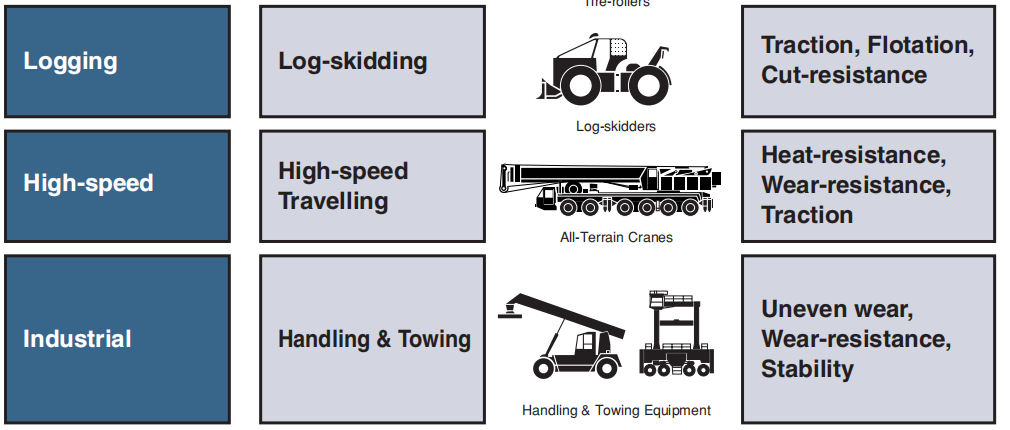

Use and Characteristics of Off The Road
The names of Tread Pattern

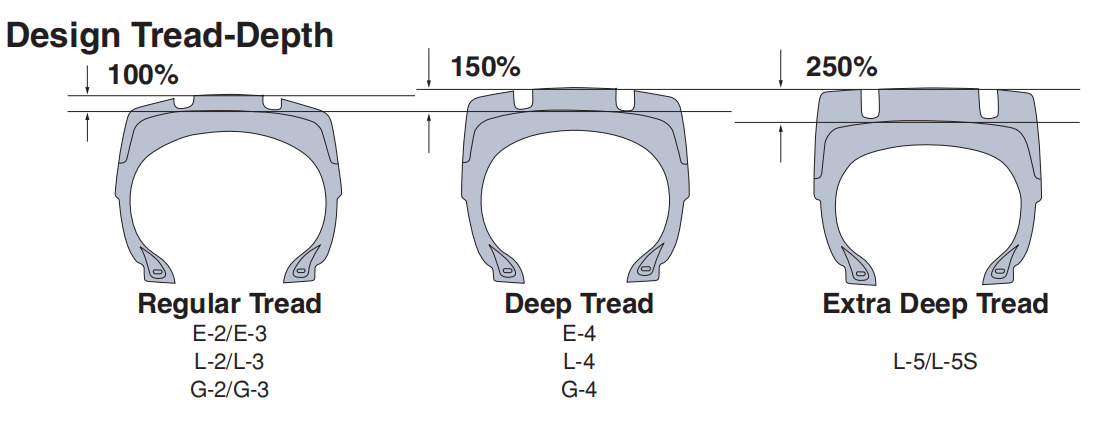

Within these categories, there are different tread depths and special tread patterns, for very specific uses.
These are identified by a number.
They must be chosen according to the type of ground and the tyre’s condition of use.
The letter “S” indicates a smooth tread; example: L-5S.
1 Ribbed (normal tread depth)
2 Traction (normal tread depth)
3 Normal (normal tread depth)
4 Deep (deep tread)
5 Very deep (very deep tread)
7 Flotation (normal tread)

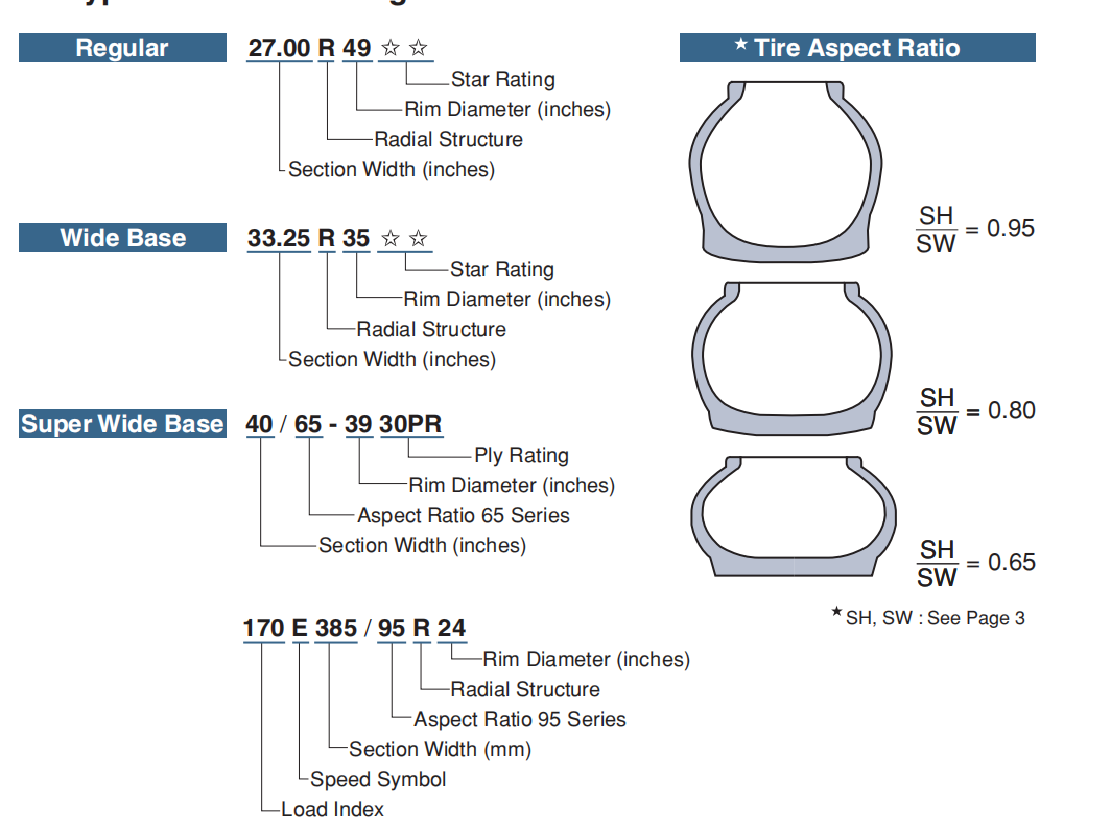

Type of Tire Size Disignation

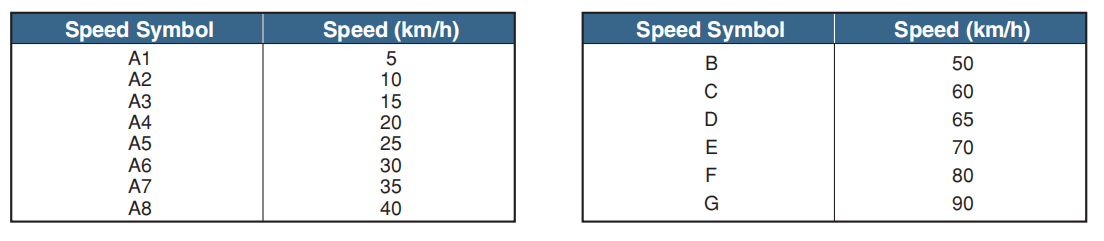

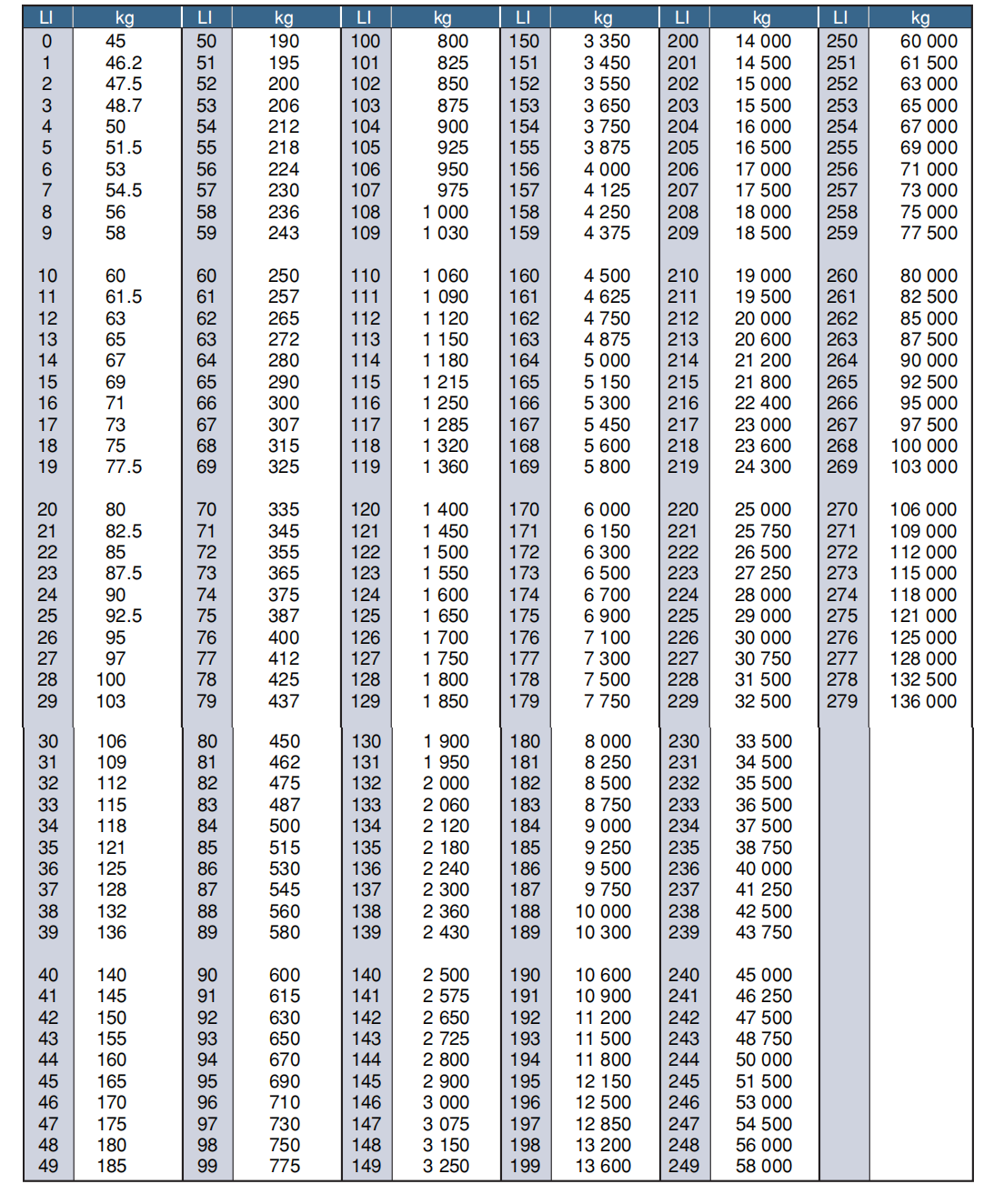

Load Index and Speed Symbol
